Here is some background on de novo genome DNA assembly (though strictly speaking you don’t need to know it to do this assignment). DNA assembly is the determination of the precise order of the nucleotides in a DNA molecule. A DNA molecule consists of four different bases, namely, adenine (A), guanine (G), cytosine (C), and thymine (T). For the purposes of this assignment we consider a DNA molecule to be a DNA strand, e.g. CTAGGAGCT (although in reality the number of bases for an actual DNA strand is much larger – on the order of billions).

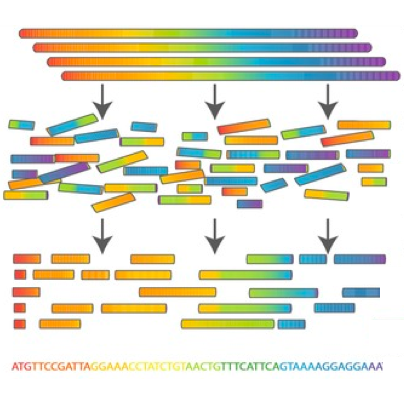

Unfortunately we can not read the whole DNA strand in one go and therefore researchers have come up with alternative methods. One such method is called shotgun sequencing. In this method, many copies of the original DNA strand are made. Each copy is then fragmented randomly into pieces. We cannot control how the copies are fragmented; they are randomly split into short contiguous fragments. Next, we read each small fragment and each result is called “short read”. Finally, we use all the short reads to reconstruct the original DNA strand. Figure 1 shows the process.
Typically the short reads we get from shotgun sequencing are significantly shorter than the actual DNA strand they came from and this imposes a first challenge. A second challenge stems from the fact that the short reads include sequencing errors (with some error rate) and this makes the de novo genome assembly even harder. There are methods to preprocess the short reads and implicitly exclude the errors. These methods are outside of the scope of this homework assignment and we refer the interested reader to [1].
The outcome of this preprocessing are unique sequence fragments of length k, henceforth called k-mers, that represent error-free DNA segments. Also, each k-mer is associated with a forward and a backward extension; these are the bases that should follow and precede the k-mer sequence in the actual DNA strand we want to reconstruct. Given a set of unique k-mers (i.e. each k-mer appears only once in the set), we can build a special graph which is a compact representation of the connectivity among these k-mers. This special type of graph is called de Bruijn and in general a de Bruijn graph is used to represent overlaps between sequences of symbols.
More specifically, in this de Bruijn graph of k-mers the vertices are the actual k-mers and two vertices are connected with an edge if the corresponding k-mers overlap in k-1 bases. Each vertex in the de Bruijn graph is guaranteed to have at most two neighbors. Additionally, each vertex in the de Bruijn graph is unique since the k-mers are unique. An example of such a de Bruijn graph is shown in Figure 2 where we illustrate a graph with k = 3. In this particular graph, nodes ATC and TCT are connected with an edge because they overlap in 2 bases (TC).

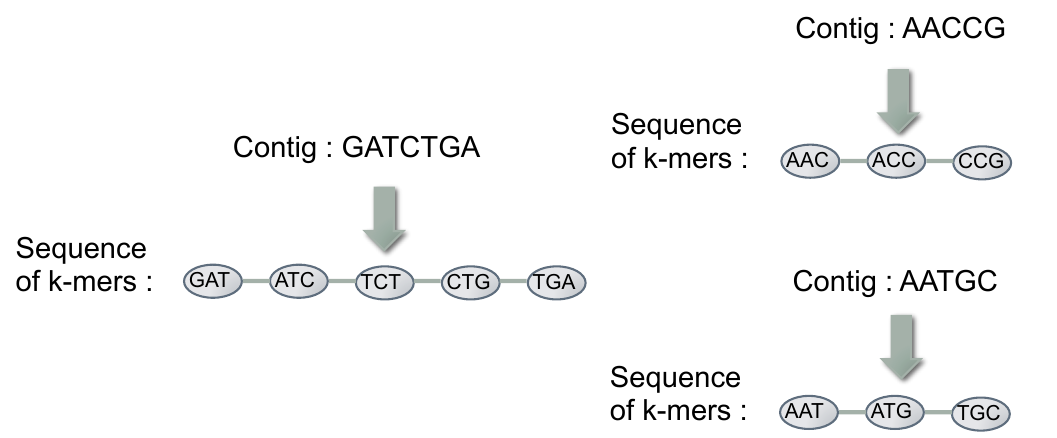

The contigs that are represented in this graph via connected components are: GATCTGA, AACCG and AATGC.
After building the de Bruijn graph, we can traverse it and find connected components that are called contigs – which is an abbreviation of contiguous. Note that these connected components should be linear chains due to the nature of DNA. Contigs are error-free DNA sequences significantly longer than the original reads. Finally, the contigs are linked together by leveraging information of the original reads and eventually we get a set of scaffolds which constitute the final result of the de novo genome assembly. For this assignment, we will be focusing on the parallel construction and traversal of the de Bruijn graph of k-mers (with a few assumptions and simplifications) and we refer the interested reader to [1] for more information on the scaffolding phase.
The input of the problem is a set of unique k-mers and their corresponding forward and backward extensions. There are also k-mers which correspond to start nodes in the de Bruijn graph: they indicate the start of a connected component. A start k-mer is flagged by having either its forward or its backward extension to be a “guard” extension F. In the example graph in Figure 2 the start node GAT has F as backward extension and the start node TGA has F as forward extension. Similarly, each connected component in the graph has two start nodes. The answer to the problem is a set of contigs that can be generated by traversing the de Bruijn graph and finding the connected components in it.
In this assignment we will be using a hash table [2] with separate chaining for collisions to store efficiently the underlying de Bruijn graph. In particular, a key in the hash table represents a node in the de Bruijn graph and its value is a two-letter code that implicitly stores its adjacent vertices (or equivalently the incident edges) efficiently. Figure 3 shows the de Bruijn graph of Figure 2 stored in a hash table. Note that each entry in the hash table includes a k-mer (key) and its corresponding forward and backward extensions.

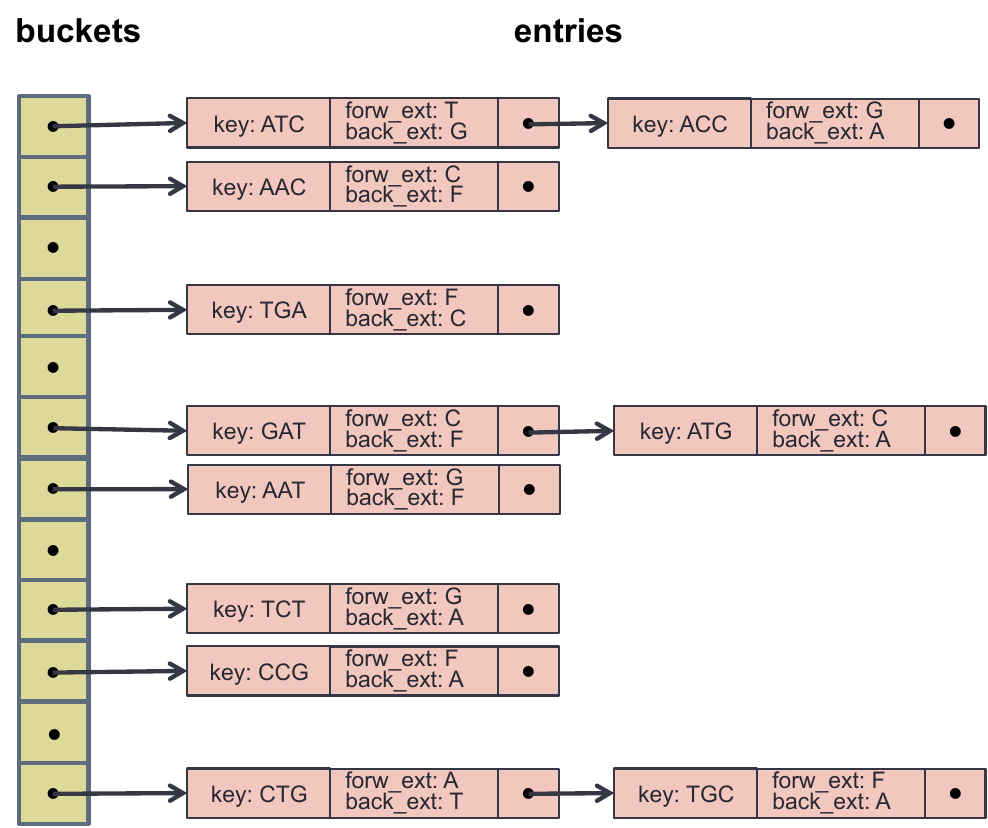

Given a k-mer, we can concatenate its backward extension and the first k-1 bases of the k-mer and we get the preceding vertex (k-mer) in the graph. Similarly, if we concatenate the last k-1 bases of the k-mer and its forward extension we get the following vertex in the graph. For example, in the graph of Figure 2, node TCT is stored in the hash table with key TCT and its forward extension is G while the backward extension is A, meaning that CTG is the following vertex and ATC is the preceding vertex. Also, we emphasize that the de Bruijn graph is undirected and therefore we can visit a vertex both from the following node and from the preceding node.
Algorithm 1 illustrates the serial de Bruijn graph construction and traversal procedure. First, we store the input k-mers and their corresponding extensions in the hash table. If the backward extension of a k-mer is F, we append that k-mer in a startNodesList since we know that this is a start node in the de Bruijn graph and we can use this vertex as a traversal seed.
Algorithm 1: De Bruijn Graph Construction And Traversal
Input: A set of k-mers and their corresponding forward and backward extensions
Output: A set of contigs
/* Initialization */
hashTable<-CREATEHASHTABLE( )
startNodesList<-CREATEEMPTYLIST( )
/* De Bruijn Graph Construction */
for each (k-mer, forwardExt, backwardExt) in input do
ADDKMERTOHASHTABLE(hashTable, (k-mer, forwardExt, backwardExt))
if (backwardExt is F) then
ADDKMERTOLIST(startNodesList, (k-mer, forwardExt))
end if
end for
/* De Bruijn Graph Traversal */
for each (k-mer, forwardExt) in startNodesList do
currentContig<-CREATENEWSEQUENCE(k-mer)
currentForwardExtension<-forwardExt
while (currentForwardExtension is not F) do
ADDBASETOSEQUENCE(currentForwardExtension, currentContig)
currentKmer<-LASTKBASES(currentContig)
currentForwardExtension<-LOOKUP(hashTable, currentKmer)
end while
STORECONTIG(currentContig)
end forAfter storing the input in the hash table, we iterate over the startNodesList and we pick traversal seeds. Given a traversal seed, we initialize a new contig sequence with that seed (k-mer) content. Then we expand the current contig sequence by iteratively adding one base at a time. Specifically, by taking the last k bases of the contig we form a new k-mer and we look it up in the hash table. As a result of this look up we get a new forward extension and we append it at the end of the current contig. We terminate the current traversal (and the current contig) when we encounter a forward extension that is F – we know that we found the other start node of this connected component. The graph traversal is completed when all the connected components have been discovered or equivalently when all the start nodes from the startNodesList have been exhausted.
Dear Remote Students, we are thrilled to be a part of your parallel computing learning experience and to share these resources with you! To avoid confusion, please note that the assignment instructions, deadlines, and other assignment details posted here were designed for the local students. You should check with your local instruction team about submission, deadlines, job-running details, etc. and utilize Moodle for questions. With that in mind, the problem statement, source code, and references should still help you get started (just beware of institution-specific instructions). Best of luck and we hope you enjoy the assignment!
For this assignment you are asked to parallelize the de Bruijn graph construction and traversal algorithm by using the Unified Parallel C (UPC) programming language. You can assume that the number of connected components in the de Bruijn graph is orders of magnitude larger that the number of processors. We will examine the strong scaling efficiency of your code in two scenarios:
Feel free to output up to p files when running on p processors (you are welcome to output just one file as well). All your output file names must begin with pgen and end with .out.
init.shan environment initialization bash script. Run source init.sh and then make to build the provided code out-of-the-box. You may modify init.sh to build your code in a different programming environment.
serial.cpp, contig_generation.h, kmer_hash.h, packingDNAseq.ha serial implementation that you need to efficiently parallelize
pgen.upca UPC code skeleton for you to start
Makefilea Makefile for Edison
job-serial, job-upcsample batch files to launch jobs on Edison. job-upc shows you how to check your output correctness with Unix’s sort and diff tool. You may want to change the input path depending on where you store test or whether you want to use the large input (see below).
job-scale-single-node, job-scale-multi-nodesample batch files for single- and multiple-node strong scaling experiments. You may want to change the input path depending on where you store test or whether you want to use the large input (see below).
kmers.tar.gzall the above files in an archive
test.zipa zipped test input file (small). Unzip before running…
You can find the large input file here.
IMPORTANT: The large input has 51-mers instead of 19-mers in the small test input file.
You must change the line KMER_LENGTH = 19in Makefile to KMER_LENGTH = 51 and recompile your code before running it. (And vice versa if you want to run the small test input file again.)
Further, the large input file should be put in your $SCRATCHfolder for faster input read. Also configure $SCRATCH’s striping parameter for even better read performance. (Even though it’s only necessary for files larger than 1GB according to NERSC’s guide.) I.e. on top of using $SCRATCH, you might also want to use multiple OSTs to increase parallel I/O performance. In order to do so:
cd $SCRATCHmkdir my_stripped_folderlfs setstripe my_stripped_folder -c 72 -s 8Mmy_stripped_folderYou may want to play around with the -c and -s parameters. Also, for lower concurrencies striping might hurt performance. More information on this link. You might check if there’s any other filesystem that’s faster than reading from your home folder, and the appropriate setting for it.
You may work in groups of 2 or 3 (no more, no fewer). One person in your group should be a non-EECS student, but otherwise you are responsible for finding a group. The number of non-EECS students is a little less than half the total enrollment, so some teams may not have a non-EECS student. In that case, one person in such team should be a non-CS student. Once you have a group, add yourselves to a bCourses group (we have pre-created empty groups) by following these instructions. Have 1 person submit your assignment via your bCourses group, do not use the individual student submission function.
Your submission should be a zip or tar file of a directory that contains your report, Makefile, and source code. Spell out in your report what Makefile target we are to build. We need to be able to build and execute your implementation in order for you to receive credit.
Here is the list of items you might show in your report:
Your submission should be a single name1_name2_name3_hw3.tar.gz that, when unzipped, gives us a folder named name1_name2_name3_hw3. In this folder there should be the source files, a report file named report.pdf, a text file named members.txt containing your teammate’s names, one line for each member, and a bash script named init.sh containing commmands to initialize your preferred programming environment.
Example:
Marquita_Jenny_hw3 (a folder)
|--source files
|--Makefile with make target pgen
|--report.pdf
|--members.txt
|--init.shExample members.txt:
Marquita Ellis
Jenny HuangExample init.sh for Berkeley UPC (with GNU programming environment):
#!/bin/bash
module swap PrgEnv-intel PrgEnv-gnu
module load bupcIf, for some reason, you need to configure some environment variables, feel free to do so in your init.sh. Note that your scripts are subject to check.
Assume that the underlying de Bruijn graph consists of p connected components (p is the number of processors) whose length (number of vertices) follows a power law distribution. How well does your parallel code perform on this input? Can you do better (algorithmically)?
Assume that the underlying de Bruijn graph consists of a single connected component. How well does your parallel code perform on this input? Can you do better (algorithmically)?
[1] J. A. Chapman, I. Ho, S. Sunkara, S. Luo, G. P. Schroth, and D. S. Rokhsar, “Meraculous: De Novo Genome Assembly with Short Paired-End Reads,” PloS one, vol. 6, no. 8, p. e23501, Aug. 2011.
[2] Wikipedia, “Hash table — wikipedia, the free encyclopedia.” 2017 [Online]. Available: \url{https://en.wikipedia.org/w/index.php?title=Hash_table&oldid=769615826}
